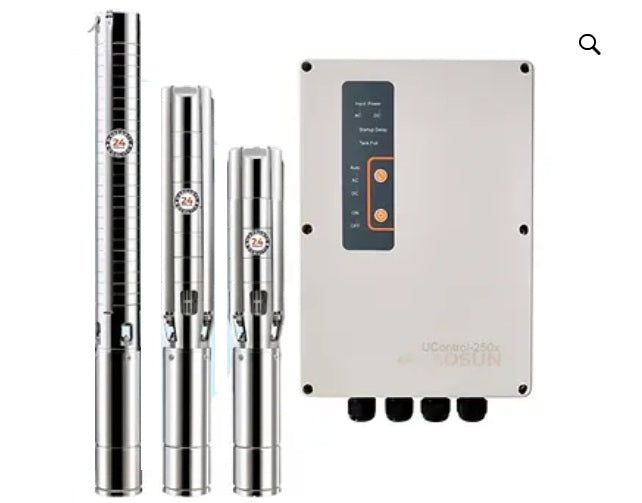

Belenus 240 m photovoltaic well pump kit.

The BELENUS submersible pump works in the following three modes:

- Solar panels DC current 200-780 VDC
- Three-phase AC generator 330-520 V/45-60 Hz
- Three-phase AC current 330-520 V/45-60 Hz

The pump operates with 5-16 solar panels (200-780V DC) or with mains power and a 380V AC generator.

Adaptable to any situation

The interior of the pump is designed to accommodate most pumping conditions, whether high flow rate or very high head.

That's why we have products ranging from 5 meters to 240 meters high and from 220 L/H to 11,200 L/H

All this without sacrificing efficiency, making the most of the connected photovoltaic energy.

Automatic tank filling control

We've simplified the tank filling control system with an automatic controller. This allows the system to automatically start and stop based on the tank's capacity.

It also allows the connection of AC power for the use of a generator that can be started and stopped fully automatically.

Dry Well Protection

There are two very important factors to consider to ensure the pump stops before the well dries completely: the first is to protect the pump itself. The second is to preserve the well. This is why Acrosun developed the StopFlow system, which automatically shuts down the pump.

In this way we were able to significantly extend the life of both parts.

Direct current or alternating current! With the same wires!

This pump only requires three wires to operate, one of which is the ground connection. These three wires allow us to power the pump with either direct current (DC) or alternating current (AC). Yes, it sounds incredible. This way, we maximize the options available when using a solar pump.

Stainless steel body

Our product is made from the most durable materials. The entire assembly is made of 304 stainless steel.

Wide voltage range

The operating range of our equipment is between 200 and 780 volts, a fundamental value for making the most of the photovoltaic field.

Up to 11,000 liters/hour

We have equipment capable of delivering a flow rate of up to 11,200 liters/hour. This is incredible, considering the power of the solar panels required.

Encapsulated electronics

The system's simplicity in terms of operation and installation lies in the pump itself. This is where its brain resides: an intelligent electronic system whose functionality is essential. All of this is protected inside the motor housing.

FEATURES OFFERED BY THE UControl-750x CONTROLLER:
• Select the input power source. In AC mode, the
Input power source can be a mains connection or a generator.
• Selection of input power source. In DC mode, the
The input power source can be solar panels or batteries. DC is the default power source.
• Button to switch between automatic mode, AC mode and DC mode.
• Pump on/off control.
• High voltage protection. The pump motor shuts off when the AC voltage drops within the range of 330-520V.
• High voltage protection. The pump motor shuts down when the DC voltage exceeds 520-750V.
• The pump stops when the controller sensor detects that the tank is
full. Likewise, when the water level drops, the pump restarts.

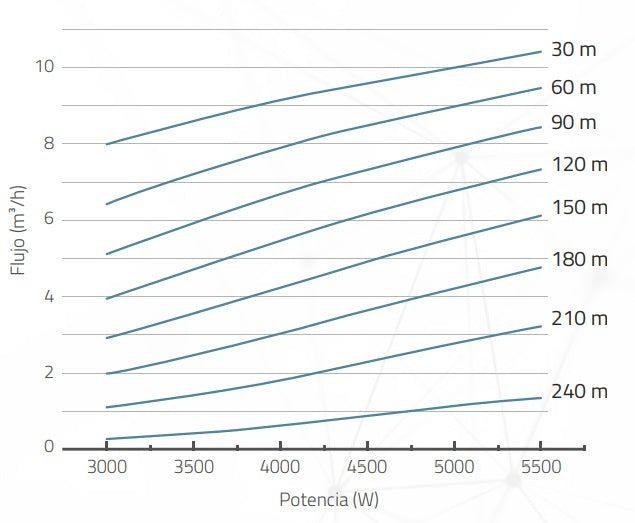

Technical data

– Power P1: 5.5 KW max.
– DC Range: 200-780V
– AC Range: 330-520V

– 7.5 HP engine
– Max. current: 17 A
–
Max. flow rate: 11 m³/h – Max. head: 240 m
– Engine: 4″
– Output: 2″
– Speed: 4000 rpm
– Weight: 14.5 kg
– Height: 97 cm
– Degree of protection: IP68
– Pumped liquid: Water
– Max. temperature of liquid: 36ºC (96.8ºF)
– Diving depth: 150 m
– Certifications: TUV, CE, UL

Characteristics

– The motor and pump body are made
in AISI 304 stainless steel.
– Three-wire wiring: (Ground + Pin 1 + Pin 2) None
defined polarity for easy installation.
– 7.5 HP engine

– Centrifugal pump.
– StopFlow pump protection system

UControl +7.5 CONTROLLER FEATURES:

• Option for manual or automatic configuration.
• Automatic tank filling.
• Automatic direct irrigation.
• Possibility of using a generator or photovoltaic panels.
• LED indicators for full or empty tank.
• Weatherproof (avoid direct sunlight).

Frequency: 45-60 Hz
Power: 200-780 VDC
AC Range: 3-phase 330-520V

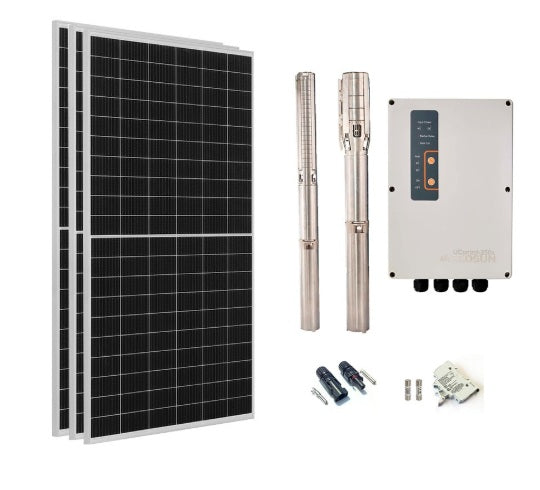

We offer a complete kit of:

- 1 Belenus 240m well pump.
- 9 x 610W AIKO N-Type ABC solar panels measuring 2278 mm x 1134 mm x 35 mm
- 1 30° angled aluminum floor stand for 9 panels
- 20 meters of 6mm red cable for solar panels
- 20 meters of 6mm black cable for solar panels
- 2 MC4 connectors for solar panels
- 1 Belenus 240 m three-phase pump controller
- 1 electrical panel kit for system protection

Electrical cable to connect the pump to the controller not included.

Price includes 10% VAT and shipping costs. Delivery within 10 days.
